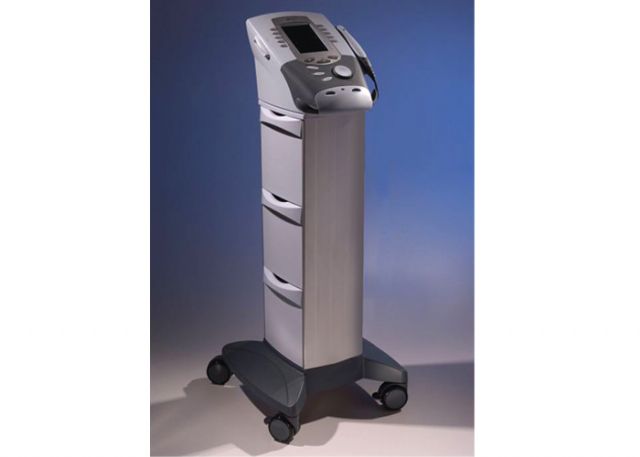

Intelect® is a name the clinical rehabilitation community has relied on for many years. Intelect® has evolved into an exceptional award winning range of therapy systems with the new Intelect® Legend XT.
Features:
- Clean, award winning modular design
- Easy-to-add modularity allows the addition of 2 additional Channels of Electrotherapy or a Battery Module
- Mulitple waveform electrotherapy - 6 clinical waveforms: Interferential, Premodulated, High Volt, Russian, Symmetrical Byphasic and Microcurrent
- 2 independent Electrotherapy channels
- Dual frequency Ultrasound at 1 and 3.3 MHz
- Pulsed or Continuous Duty Cycles (10%, 20%, 50% & 100%)
- 4 ergonomically designed sound head applicator sizes: 1cm², 2cm², 5cm² & 10cm²
- User defined protocols for your specific needs
- Documentation of treatment outcomes with Patient Data Cards including pain map profile, modality records, electrode placement diagrams and session notes
Specifications:
| Product Weight |
7 lb (3.2 kg) |
| Product Length |
12.75 in (32.4 cm) |
| Product Width |
11.4 in (28.9 cm) |
| Product Height |
8.75 in (22.2 cm) |
| Shipping Weight |
16 lb (7.3 kg) |
| Mains Power |
100-240 VAC, 50/60 Hz |
| Safety Tests |
UL/IEC/EN 60601-1, IEC/EN 60601-1-2, IEC 60601-2-5, IEC 60601-2-10 |
| Electrical Class |
Class 1, Electrotherapy Type BF, Ultrasound Type B |
Standard Accessories:
 |
Patient Data Card (1x)
CTG-27465
Patient data cards allow patient modality and pain profile information to be recorded from the unit and reviewed on the PC, or filed with the patient's treatment records for use in future treatment sessions.
Can be formatted to Chattanooga Group Therapy Systems and Traction Devices. |
 |
Intelect® Legend XT/Intelect TranSport® - 5 cm² Sound Head Applicator
CTG-27383
Pre-calibrated, waterproof and ergonomically designed sound head applicators which operate at 1 and 3.3 MHz frequencies.
All sound head applicators are interchangeable with Electronic Signature Recognition residing on all transducers.
Head warming feature on all applicators.
Applicators are also available in 1 cm² , 2 cm² and 10 cm² sizes. |
 |
Conductor™ Ultrasound Gel - 8.5oz (250 ml) Bottle (1x)
CTG-4248
9 oz. (270 ml) Plastic Bottle
Water-soluble, non-geasy ultrasound and electrical coupling gel. |
 |
Electrotherapy Leadwire Channel 1
CTG-27312
Leading Therapy in a New Direction
For use with Vectra® Genisys, Intelect® Legend XT and Intelect® Transport
Newly designed with a rip stop feature and color-coding on the connectors to easily distinguish between channels. |
 |
Electrotherapy Leadwire Channel 2
CTG-27313
Leading Therapy in a New Direction
For use with Vectra® Genisys, Intelect® Legend XT and Intelect® Transport
Newly designed with a rip stop feature and color-coding on the connectors to easily distinguish between channels. |
 |
DURA-STICK® II 2.75 in (7cm) Round Electrodes (4x)
CTG-42044
Our most popular and best selling electrode, DURA-STICK® II electrodes provide comfortable and effective stimulation through the unique silver printed conductor.
Flexible, yet sturdy construction offers increased durability and ease of removal. Soft and conformable lead wire connectors offer superior grip to the lead wire pin. |
|
